Surface Grinders
U.S. Industrial Machinery has you covered with all of the machinery to perform artistic metalworking jobs right down to the finish. Our surface grinder inventory includes four models that offer varying levels of grinding but all provide the finish you need. Our company prides itself on the high level of customer service we provide each customer. This includes our ongoing support for you with your products, including our warranty, troubleshooting support, and traveling field technicians. Contact our team today to learn more about incredible equipment at some of the most competitive prices.
Types of Surface Grinder Operation
Each one of our surface grinders includes a two-axis readout. Operation type varies by model number, but you can find a machine that offers all manual operation, electric reciprocating and electric cross, or hydraulic reciprocating and electric cross. Each one is capable of 220- or 440-volt 3-phase electric power.
Surface Grinder Standard Features
At our Memphis, Tennessee facility we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery. We don’t let products leave our hands until we are fully confident that they surpass our high standards. When you order one of our four standard models, you can look forward to included features, such as:
- Sino two-axis digital readout
- Grinding wheel
- Balancing base and arbor
- Wheel dresser with diamond
- Lube system
- Permanent magnetic chuck
- Wheel flange
- Toolbox and tools
- Coolant system
DOWNLOADABLE PDF QUOTES BY SURFACE GRINDER MODEL
Your Surface Grinder Headquarters
Since 1986, U.S. Industrial Machinery has taken a hands-on approach to sales and customer service. Our customer base is made up of equal parts local mom and pop service providers and national corporations, and we offer the same level of detail and care to both. Whether you need a basic surface grinding machine for small shop jobs or a custom-built piece of equipment for industrial-sized work, we can provide a solution for you. Contact us for a quote today.

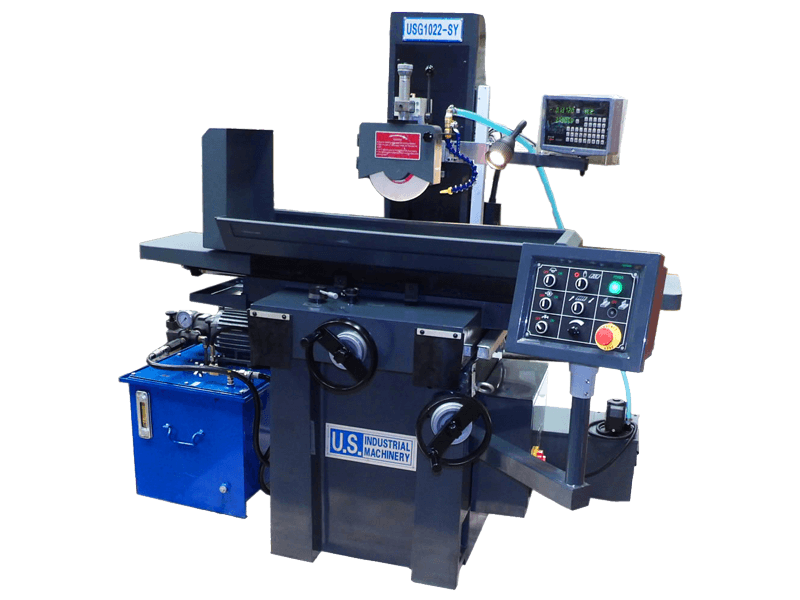

U.S. Industrial Surface Grinder Models
| Surface Grinder | USG618A-S | USG618S-SD | USG1022-SY | USG1224-SY |
|---|---|---|---|---|
| Surface GrinderTwo-Axis Readout Included | USG618A-SYes | USG618S-SDYes | USG1022-SYYes | USG1224-SY Yes |
| Surface GrinderType of Operation | USG618A-SAll Manual | USG618S-SDElectric Recip. and Elec. Cross | USG1022-SYHydraulic recip, electric cross | USG1224-SY Hydraulic recip, electric cross |
| Surface GrinderSlideway Type | USG618A-SV Rail With Ball Track | USG618S-SDV Rail With Ball Track | USG1022-SYDouble V Type Rail | USG1224-SY Double V Type Rail |
| Surface GrinderMachine Lube System | USG618A-SOne-Shot Manual | USG618S-SDOne-Shot Manual | USG1022-SYPart of Hydraulic System | USG1224-SY Part of Hydraulic System |
| Surface GrinderFunction of table reciprocation | USG618A-SManual-handwheel only | USG618S-SDElec. Drive table & cross | USG1022-SYHydraulic recip only | USG1224-SY Hydraulic recip only |
| Surface GrinderWheelhead movement up/down | USG618A-Shandwheel-manual | USG618S-SDhandwheel-manual | USG1022-SYhandwheel-manual | USG1224-SY handwheel and power elevation |
| Surface GrinderWheelhead dial graduation | USG618A-S.0002" | USG618S-SD.0002" | USG1022-SY.0002" | USG1224-SY .0004" |
| Surface GrinderPerm mag chuck included | USG618A-S5.9" x 15.75" | USG618S-SD5.9" x 15.75" | USG1022-SY9.8" x 19.7" | USG1224-SY 11.8" x 23.6" |
| Surface GrinderPole spacing of mag chuck | USG618A-S.125" | USG618S-SD.125" | USG1022-SY.125" | USG1224-SY .090" |
| Surface GrinderTable/cross travel max | USG618A-S18" x 7" | USG618S-SD18" x 7" | USG1022-SY22" x 10.2" | USG1224-SY 24.8" x 12.6" |
| Surface GrinderCross dial graduation | USG618A-S.0005" | USG618S-SD.0005" | USG1022-SY.0005" | USG1224-SY .0005" |
| Surface GrinderGrinding wheel supplied | USG618A-S7" x 1/2" - 1.25" hole | USG618S-SD7" x 1/2" - 1.25" hole | USG1022-SY8" x 3/4" -1.25" hole | USG1224-SY 12" x 1-1/4" - 3" hole |
| Surface GrinderDist under wheel to chuck | USG618A-S7 -1/2" | USG618S-SD7 -1/2" | USG1022-SY10" | USG1224-SY 11 - 1/2" |
| Surface GrinderWheel balancing arbor/base | USG618A-SYes - included | USG618S-SDYes - included | USG1022-SYYes - included | USG1224-SY Yes - included |
| Surface GrinderOver wheel diamond dresser | USG618A-SNo - table dresser | USG618S-SDYes - included | USG1022-SYYes - included | USG1224-SY Yes - included |
| Surface GrinderWorklight | USG618A-Sincluded | USG618S-SDincluded | USG1022-SYincluded | USG1224-SY included |
| Surface GrinderSpindle RPM | USG618A-S3360 | USG618S-SD3360 | USG1022-SY3360 | USG1224-SY 1680 |
| Surface GrinderSpindle HP | USG618A-S2 HP | USG618S-SD2 HP | USG1022-SY2 HP | USG1224-SY 3 HP |
| Surface GrinderHydraulic System | USG618A-SNA | USG618S-SDNA | USG1022-SY2 HP - 21 gallons | USG1224-SY 3 HP - 27 gallons |
| Surface GrinderCoolant Pump - Tank size | USG618A-S40 watt - 9 gallons | USG618S-SD40 watt - 9 gallons | USG1022-SY40 watt - 9 gallons | USG1224-SY 40 watt - 9 gallons |
| Surface GrinderVoltage - Customer specify | USG618A-S220/440, 3 phase | USG618S-SD220/440, 3 phase | USG1022-SY220/440, 3 phase | USG1224-SY 220/440, 3 phase |
| Surface GrinderFull load amps @ 220 Volts | USG618A-S4 | USG618S-SD6 | USG1022-SY20 | USG1224-SY 20 |
| Surface GrinderGross Weight | USG618A-S1690 lbs. | USG618S-SD1690 lbs. | USG1022-SY2,300 lbs. | USG1224-SY 3,400 lbs. |
| Surface GrinderShipping Dimensions | USG618A-S40"L x 45"W x 70"T | USG618S-SD40"L x 45"W x 70"T | USG1022-SY48"L x 66"W x 73"T | USG1224-SY 56"Lx 72"W x 76"T |
