Precision Geared Head Engine Lathes

U.S. Industrial Machinery is your headquarters for precision-geared head engine lathes to complete jobs that require precise shaping of metals. Our standard stock machines range in size from 13 x 40 to 26 x 120, however; we can accommodate custom lathes of any size.  In addition to our competitive prices, customers benefit from our continued support and troubleshooting assistance throughout the entire life of their machine. When you buy from us, we are here when you need us to offer any technical help you need.  Most of our machines come with a one-year warranty on parts and labor.  Need a lathe for bigger jobs than our standard line covers? Contact us for a custom quote.

Contact Us

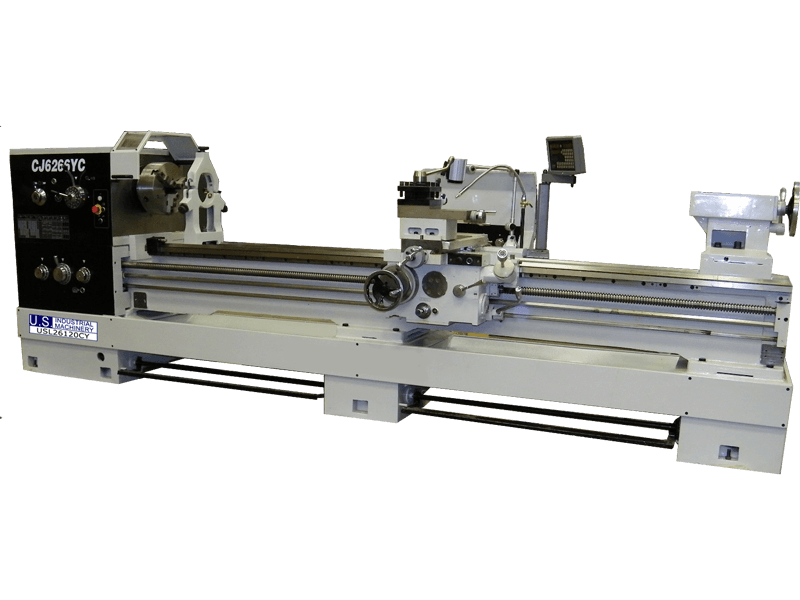

lathe

Standard Line Engine Lathe Features

All lathes are assembled in our Memphis, TN facility and undergo complete testing, calibration, and adjustments to ensure optimal performance when delivered. Most standard model lathes include the following features:

  • 3-jaw chuck and 4-jaw chuck
  • Face plate and dog plate
  • Chuck guard
  • Steady rest and follow rest
  • Splash guard
  • Flood coolant
  • Thread dial
  • Digital readout
  • Taper attachment

Heavy Duty Geared Head Engine Lathe

For more demanding work and the ultimate execution of rigorous jobs, we offer a heavy-duty geared head engine lathe for heavy turning. When your industry or profession calls for it, we deliver with some of the most substantial machinery in the business. This heavy-duty lathe features:

  • Weight capacity between centers of more than 40,000 lbs
  • Swing of 40” to 120”
  • Center Distance of 10’ to 80’
  • High horsepower headstock
  • Hydraulic tailstock quill and power travel
  • Rotating center and 3-jaw chuck on tailstock
  • Heavy-duty roller support
  • Heavy-duty steady rest
  • Extensive four-way bed

Find a High-Performance Lathe Today

U.S. Industrial Machinery offers a complete line of precision lathes to handle jobs of all sizes for customers from every industry. No matter how large or small your needs are, we offer excellent customer service, technical support, and a one-year warranty on every product. Contact us to find the perfect lathe for your company today.

lathe
lathe
mega lathe

DOWNLOADABLE PDF QUOTES BY LATHE MODEL

For machine specifications and pricing, please click the below links.

USL1340BH

USL1640CX

USL1660CX

USL20x80BH

USL20x120BH

USL26x120BH

U.S. Industrial Standard Lathes

Most models include:

  • 3-Jaw Chuck & 4-Jaw Chuck
  • Face Plate & Dog Plate
  • Chuck Guard
  • Steady Rest & Follow Rest
  • Splash Guard
  • Flood Coolant
  • Thread Dial
  • Digital Readout
  • Taper Attachment
USL1340BH-KITUSL1640CX-KITUSL1660CX-KITUSL2080BH-KITUSL20120BH-KITUSL26120BH-KIT
Swing over bedwaysUSL1340BH-KIT12.99"USL1640CX-KIT16.53"USL1660CX-KIT16.53"USL2080BH-KIT19.7"USL20120BH-KIT19.7"USL26120BH-KIT26.0"
Swing over cross slideUSL1340BH-KIT7.79"USL1640CX-KIT8.85"USL1660CX-KIT8.85"USL2080BH-KIT11.8"USL20120BH-KIT11.8"USL26120BH-KIT16.53"
Swing over gapUSL1340BH-KIT18.74"USL1640CX-KIT21.65"USL1660CX-KIT21.65"USL2080BH-KIT28.0"USL20120BH-KIT28.0"USL26120BH-KIT34.25"
Distance between centersUSL1340BH-KIT39.37"USL1640CX-KIT39.37"USL1660CX-KIT59.05"USL2080BH-KIT78.74"USL20120BH-KIT118"USL26120BH-KIT118"
Spindle boreUSL1340BH-KIT2.008"USL1640CX-KIT3.15"USL1660CX-KIT3.15"USL2080BH-KIT4.134"USL20120BH-KIT4.134"USL26120BH-KIT4.134"
Spindle speeds range - RPMUSL1340BH-KIT90 to 2000USL1640CX-KIT24 to 1600USL1660CX-KIT24 to 1600USL2080BH-KIT36 to 1600USL20120BH-KIT36 to 1600USL26120BH-KIT36 to 1600
Longitudinal feed range - IPRUSL1340BH-KIT.0049 to .0656USL1640CX-KIT.0027 to .150USL1660CX-KIT.0027 to .150USL2080BH-KIT.0023 to .0937USL20120BH-KIT.0023 to .0937USL26120BH-KIT.0023 to .0937
Cross feed range - IPRUSL1340BH-KIT.0016 to .0210USL1640CX-KIT.00135 to .075USL1660CX-KIT.00135 to .075USL2080BH-KIT.0011 to .0404USL20120BH-KIT.0011 to .0404USL26120BH-KIT.0011 to .0404
Metric Threading rangeUSL1340BH-KIT.45 to 10mmUSL1640CX-KIT.5 to 28mmUSL1660CX-KIT.5 to 28mmUSL2080BH-KIT1 to 14mmUSL20120BH-KIT1 to 14mmUSL26120BH-KIT1 to 14mm
Inch Threading range -TPIUSL1340BH-KIT2-1/4 to 40USL1640CX-KIT1 to 56USL1660CX-KIT1 to 56USL2080BH-KIT2 to 28USL20120BH-KIT2 to 28USL26120BH-KIT2 to 28
Tailstock taperUSL1340BH-KITNo. 3 MTUSL1640CX-KITNo. 5 MTUSL1660CX-KITNo. 5 MTUSL2080BH-KITNo. 5 MTUSL20120BH-KITNo. 5 MTUSL26120BH-KITNo. 5 MT
Spindle powerUSL1340BH-KIT2 HPUSL1640CX-KIT10 HPUSL1660CX-KIT10 HPUSL2080BH-KIT10 HPUSL20120BH-KIT10 HPUSL26120BH-KIT10 HP
Power requirementUSL1340BH-KIT220V, 1phUSL1640CX-KIT220/440V, 3phUSL1660CX-KIT220/440V, 3phUSL2080BH-KIT220/440V, 3phUSL20120BH-KIT220/440V, 3phUSL26120BH-KIT220/440V, 3ph
Gross WeightUSL1340BH-KIT1,400 lbsUSL1640CX-KIT3,900 lbsUSL1660CX-KIT4,400 lbsUSL2080BH-KIT6,500 lbsUSL20120BH-KIT7,700 lbsUSL26120BH-KIT8,500 lbs
Crated Dimensions- LxWxHUSL1340BH-KIT77" x 30" x 60"USL1640CX-KIT100" x 48" x 60"USL1660CX-KIT120" x 48" x 60"USL2080BH-KIT147" x 40" x 50"USL20120BH-KIT183" x 40" x 50"USL26120BH-KIT183" x 40" x 55"
3-jaw chuck - diameterUSL1340BH-KIT8"USL1640CX-KIT10"USL1660CX-KIT10"USL2080BH-KIT12"USL20120BH-KIT12"USL26120BH-KIT12"
4-jaw chuck - diameterUSL1340BH-KIT8"USL1640CX-KIT12"USL1660CX-KIT12"USL2080BH-KIT16"USL20120BH-KIT16"USL26120BH-KIT16"
Faceplate - diameterUSL1340BH-KIT10"USL1640CX-KIT15"USL1660CX-KIT15"USL2080BH-KIT25"USL20120BH-KIT25"USL26120BH-KIT25"
4-way toolpost is includedUSL1340BH-KIT<5/8" squareUSL1640CX-KIT<1" squareUSL1660CX-KIT<1" squareUSL2080BH-KIT<1-1/4" squareUSL20120BH-KIT<1-1/4" squareUSL26120BH-KIT<1-1/4" square
Sino 2-axis digital readoutUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Steady restUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Follow restUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Micrometer carriage stopUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KIT--USL26120BH-KIT--
Thread dialUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Work lampUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Taper attachmentUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Rear splash guardUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Chuck guardUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Flood coolant systemUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Slide out chip traysUSL1340BH-KITIncludedUSL1640CX-KITIncludedUSL1660CX-KITIncludedUSL2080BH-KITIncludedUSL20120BH-KITIncludedUSL26120BH-KITIncluded
Price - F.O.B. Memphis, TNUSL1340BH-KIT$11,950.00USL1640CX-KIT$22,990.00USL1660CX-KIT$25,990.00USL2080BH-KIT$34,990.00USL20120BH-KIT$38,990.00USL26120BH-KIT$44,990.00
