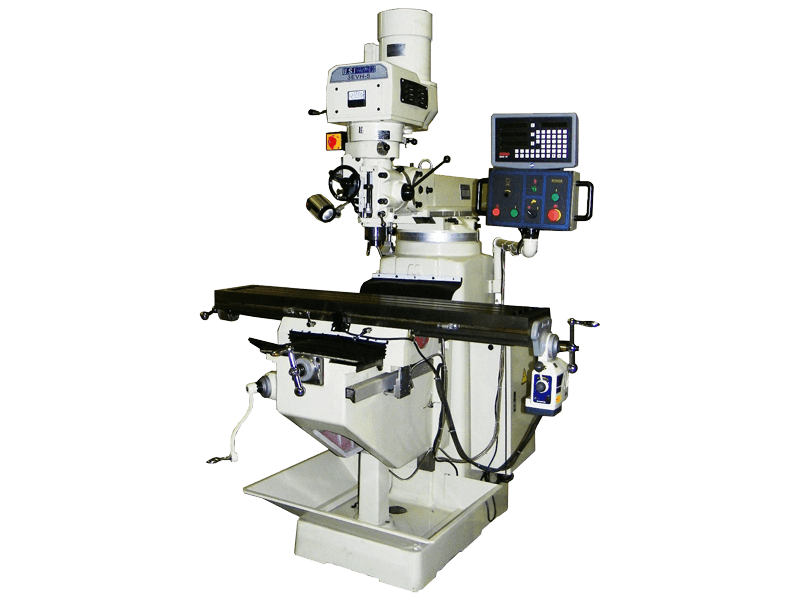

High-Performance Milling Machines
U.S. Industrial Machinery’s line of milling machines offers a ton of user flexibility to make precision cuts for beautiful finished work. At our Memphis, Tennessee facility we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery to ensure sturdy, functional pieces of equipment that can be put to the test of the most demanding jobs. All equipment comes with a one-year part and labor warranty, and our technical support is always available to help you troubleshoot any user problems. Contact us for a milling machine quote today.
Standard Features on U.S. Industrial Machinery Mills
Our line of milling machines features three standard models that offer the best in drilling, boring, and cutting of your materials. Choose from the manual variable speed mill, the heavy-duty manual variable speed mill, or the heavy-duty electronic variable speed mill. Each comes with the following features:
- Sino 3-Axis digital readout inch or metric
- Flood coolant and chip pan
- Power table feed
- Power quill feed
- Machine light
- Enclosed electrical cabinet
- Circuit breaker protection
- Low voltage controls
Contact Us for a Quote on Milling Machines
U.S. Industrial Machinery services businesses of all sizes throughout the country. We are committed to offering a higher level of customer service than other machine sales companies. We prove this by providing customer support for the life of our products when most others do not. Our reputation has earned us the business of many nationally recognized operations, including Sunoco, Toyota, Honda, Ford, and NASA. Don’t see a mill in our inventory that will meet your needs? Contact us to discuss custom-built equipment. We can provide a milling machine to perform every service.
| 2VH-3 | 3VH-3 | 3EVH-5 | |
|---|---|---|---|
| Table Size - 3 t-slots, 5/8" on 2.5" centers | 2VH-39" x 49" | 3VH-310" x 54" | 3EVH-510" x 54" |
| Table Travel w/ Powerfeed Installed | 2VH-329" | 3VH-334.4" | 3EVH-534.4" |
| Cross Travel w/ Readout Installed | 2VH-311" | 3VH-315.5" | 3EVH-515.5" |
| Knee Travel | 2VH-315.74" | 3VH-316.5" | 3EVH-516.5" |
| Ram Travel | 2VH-312" | 3VH-318.5" | 3EVH-518.5" |
| Quill Travel | 2VH-35" | 3VH-35" | 3EVH-55" |
| Power quill feed - .0018, .003, .006 IPR | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| Head Tilt - Left and Right - With Degree Scale | 2VH-390 degrees | 3VH-390 degrees | 3EVH-590 degrees |
| Head Tilt - Front and Back - With Degree Scale | 2VH-345 degrees | 3VH-345 degrees | 3EVH-545 degrees |
| Ram Swivel on Turret - With Degree Scale | 2VH-3360 degrees | 3VH-3360 degrees | 3EVH-5360 degrees |
| Spindle Taper | 2VH-3R8 | 3VH-3R8 | 3EVH-5R8 |
| Machine Ways, Table, Cross and Knee | 2VH-3Dovetail | 3VH-3Box | 3EVH-5Box |
| Maximum Weight of Workpiece and Fixture | 2VH-3500 lbs. | 3VH-3660 lbs. | 3EVH-5660 lbs. |
| Electrical Cabinet with Disconnect & Circuit Breakers | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| Spindle Drive | 2VH-33HP | 3VH-33HP | 3EVH-55HP |
| Vari-Speeds Spindle RPM Range | 2VH-360 to 4200 | 3VH-360 to 4200 | 3EVH-560 to 3750 |
| Voltage, 3 Phase | 2VH-3220 or 440 | 3VH-3220 or 440 | 3EVH-5220 / Option 440 |
| Amp Requirement @ 220 Volts | 2VH-310 | 3VH-315 | 3EVH-515 |
| Machine Weight | 2VH-32550 lbs. | 3VH-33400 lbs. | 3EVH-53400 lbs. |
| Shipping Dimension - L x W x H on skid | 2VH-36' x 6' x 80" | 3VH-36' x 6' x 80" | 3EVH-56' x 6' x 80" |
| Includes Schneider Electronic Spindle Drive | 2VH-3No | 3VH-3No | 3EVH-5Yes |
| Includes Manual Variable Speed Spindle | 2VH-3Yes | 3VH-3Yes | 3EVH-5Electronic |
| Includes Heavy Duty Power Table Feed | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| Includes Flood Coolant System | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| Includes Base Chip Pan | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| Includes Machine Light | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| Includes Front & Rear Way Covers | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| Includes SINO 3-Axis Digital Readout, inch/metric | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
| 100% Inspection, Calibration Prior to Shipping | 2VH-3Yes | 3VH-3Yes | 3EVH-5Yes |
